ITEM
|
DESIGN PARAMETER
|
|
Effective size
|
Custom specifications
|
|
Design/Working temperature
|
80℃-320℃
|
|
Temperature uniformity (℃)
|
±3℃
|
|
Vacuum Pressure
|
≤-0.098
|
|
Heating rate
|
0-5℃
|
|
Component thermocouple
|
2-12支
|

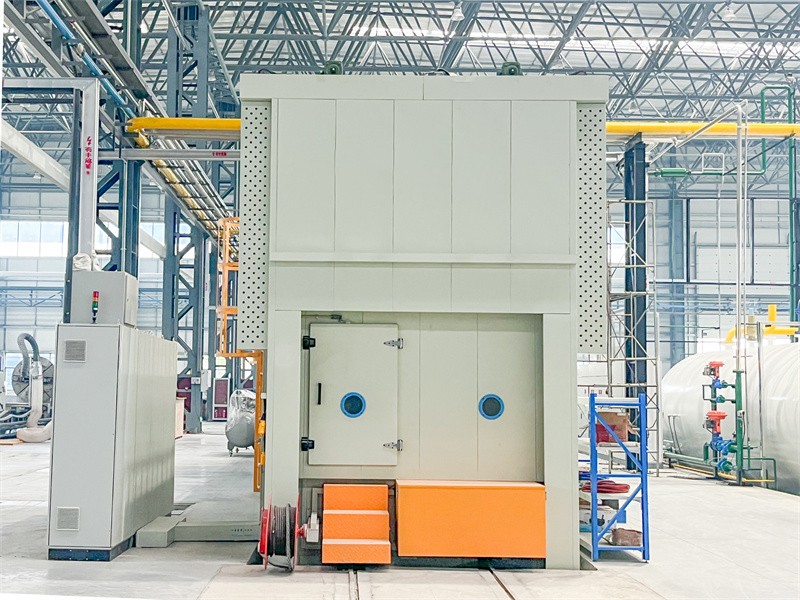

This equipment (energy-saving hot air circulation high-temperature curing oven) is mainly used for high-temperature curing and product shaping in the composite materials and carbon fiber industries. The curing oven is a key process equipment for the molding of polymer matrix composite components.
The curing oven molding process involves sealing composite material blanks, honeycomb sandwich structures, or bonded structures with a vacuum bag on a mold, then placing them inside the curing oven. Under vacuum or non-vacuum conditions, the process goes through heating, holding (at medium or high temperature), and cooling stages to shape the material into the desired form and quality.
We can manufacture single-zone and multi-zone (6-zone) curing ovens.
|
model
|
Effective internal dimensions length*width*height (m)
|
Design temperature
|
Heating rate(℃/min)
|
Temperature uniformity(℃)
|
Vacuum system
|
Heating power
|
|
SN-GHL0805
|
0.8*0.5*0.5
|
250-420
|
0.5-5
|
±3
|
一备一用
|
6KW
|
|
SN-GHL1008
|
1*0.8*0.8
|
250-420
|
0.5-5
|
±3
|
一备一用
|
12KW
|
|
SN-GHL1515
|
1.5*1.5*1.5
|
250-420
|
0.5-5
|
±3
|
一备一用
|
36 kw
|
|
SN-GHL2015
|
2*1.5*1.5
|
250-420
|
0.5-5
|
±3
|
一备一用
|
54KW
|
|
SN-GHL2515
|
2.5*1.5*1.5
|
250-420
|
0.5-5
|
±3
|
一备一用
|
63KW
|
|
SN-GHL3020
|
3*2*2
|
250-420
|
0.5-5
|
±3
|
一备一用
|
108KW
|
|
SN-GHL4020
|
4*2*2
|
250-420
|
0.5-5
|
±3
|
一备一用
|
126KW
|
|
SN-GHL4025
|
4*2.5*2.5
|
250-420
|
0.5-5
|
±3
|
一备一用
|
144KW
|
|
SN-GHL5025
|
5*2.5*2.5
|
250-420
|
0.5-5
|
±3
|
一备一用
|
162KW
|
|
SN-GHL6030
|
6*3*3
|
250-420
|
0.5-5
|
±3
|
一备一用
|
216KW
|
