Includes spreading machines, multi-tow prepreg fiber production lines, hot-melt prepreg machines, prepreg fiber production lines, and prepreg tape equipment.

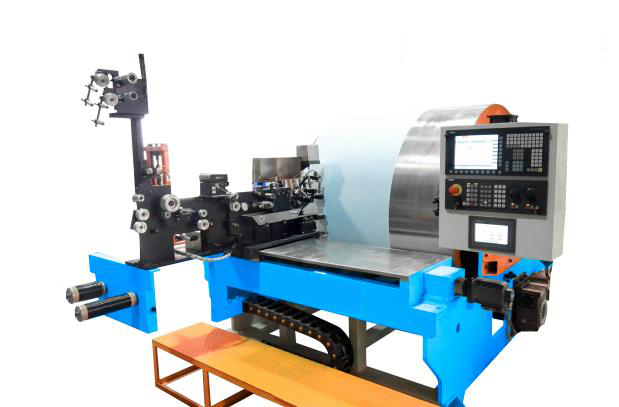

The spreading machine is a series of equipment independently developed by our company, mainly used for small-batch or R&D production of carbon fiber unidirectional non-woven fabric. The equipment features a horizontal single-structure design and incorporates computers, PLCs, motion control cards, servo motors, and a mechanical tension control system.
The resin content is adjusted using a mechanical scraper (or roller extrusion) method, enabling automated control of tension, speed, and linear movement according to different product process requirements, such as fiber tow line speed, resin content, and surface density.
This equipment offers high precision in fiber laying (spreading), a wide adjustment range (2~30N), excellent system stability, low energy consumption, comprehensive functionality, and user-friendly operation, making it one of the top domestic solutions.
Prepreg materials produced using this equipment exhibit stable and uniform resin content, high surface flatness without gaps, lightweight single layers, minimal fiber damage, and excellent surface smoothness.
|
Clamping Layout Roller Diameter
|
Specification
|
|
Layout Width
|
100~2000(mm), adjustable within the range, optional 100-2000mm layout roller
|
|
Main Shaft Speed
|
0~1200(mm), optional
|
|
Car Running Speed
|
0~200r/min, depends on the drum size
|
|
Item
|
0~40mm/rev, ±0.5 (main machine rotation speed)
|
|
Vertical Core Mold Movement Range (Manual)
|
0~250mm, optional
|
|
Tension Range
|
2~20N
|
|
Tension Accuracy
|
±5%FL
|
|
Layout Accuracy
|
±0.1mm
|
|
Infrared Drying Temperature
|
60~+200°C, +5%FL, optional
|
|
Single Filament Type (1~12K)
|
Carbon fiber, aramid, and PE fibers
|
|
Yarn Bundle Tension Range
|
2~20N (manual)
|
The hot-melt prepreg machine is suitable for resin systems with a viscosity of up to 300,000 cP and the manufacturing of unidirectional prepreg and fabric prepreg using 3K, 6K, 12K, and 48K carbon fibers. It ensures high production accuracy for prepreg materials with a surface density ranging from 20g to 600g, while maintaining stable and continuous production performance.
|
NO
|
Specification Content
|
Parameter
|
Remarks
|
|
1
|
Glue Coating Amount
|
8~100 g/m²
|
|
|
2
|
Glue Coating Speed
|
<25 meters/second
|
|
|
3
|
For surface density of 10~20 g/m²
|
deviation not greater than ±1 g/m²
|
Glue Film Surface Density and Accuracy
|
|
4
|
For surface density of 21~40 g/m²
|
deviation not greater than ±1.4 g/m²
|
|
|
5
|
For surface density of 41~70 g/m²
|
deviation not greater than ±1.75 g/m²
|
|
|
6
|
For surface density of 71~100 g/m²
|
deviation not greater than ±2.5 g/m²
|
|
|
7
|
Glue Coating Width
|
150 mm ~ 1300 mm
|
|
|
8
|
Prepreg Width
|
150 mm ~ 1300 mm
|
|
|
9
|
Production Speed
|
0.5~4 meters/min
|
|
|
10
|
Prepreg Resin Content
|
Accuracy ±2%
|
Within the range of 30~50%
|
|
11
|
Prepreg Fiber Surface Density
|
Accuracy ±5 g/m²
|
Within the range of 100~200 g/m²
|
|
12
|
Heating Roller Run-out Accuracy
|
±0.002 mm ~ 0.005 mm (at 100°C)
|
|
|
13
|
Heating Roller Gap
|
0.01 mm ~ 1 mm
|
Adjustable
|
|
14
|
Heating Roller Gap Accuracy
|
0.001 mm
|
|
